💾 Microservices

Microservices architecture is a design approach in which a single application is composed of many loosely coupled and independently deployable smaller components or services.

📚 Introduction to Microservices

This architectural style has gained significant popularity due to its scalability, flexibility, and ease of maintenance.

🏗️ Microservices Architecture Overview

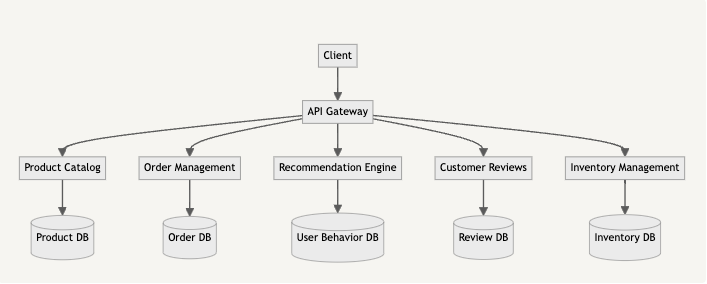

The diagram above illustrates a basic microservices architecture. Each service operates independently and communicates through well-defined APIs.

🔄 User Flow in Microservices

This sequence diagram shows a typical user flow in a microservices architecture, demonstrating how different services interact to fulfils a user request.

💻 Code Snippet: Service Communication

// In Service A
const axios = require('axios');

async function getDataFromServiceB() {
  try {
    const response = await axios.get('<http://service-b/api/data>');
    return response.data;
  } catch (error) {
    console.error('Error fetching data from Service B:', error);
    throw error;
  }
}

This code snippet demonstrates how one microservice (Service A) might communicate with another (Service B) using HTTP requests.

📊 Comparison: Monolithic vs Microservices Architecture

Aspect	Monolithic	Microservices
Deployment	Single unit	Independent services
Scaling	Entire application	Individual services
Development	Simpler for small apps	Complex but flexible
Technology Stack	Single stack	Multiple stacks possible
Data Management	Centralized database	Database per service

🛠️ Key Components of Microservices Architecture

1. 🚪 API Gateway: Acts as the single entry point for all client requests

2. 🔍 Service Discovery: Helps services find and communicate with each other

3. 🔒 Authentication & Authorization: Ensures secure communication between services

4. 📊 Monitoring & Logging: Tracks the health and performance of individual services

5. 🔄 Load Balancing: Distributes incoming traffic across multiple service instances

Let's dive deeper into each key component of microservices architecture:

1. 🚪 API Gateway

An API Gateway acts as a single entry point for all client requests, routing them to appropriate microservices.

// Example of API Gateway using Express.js
const express = require('express');
const httpProxy = require('http-proxy');

const app = express();
const proxy = httpProxy.createProxyServer();

app.use('/service-a', (req, res) => {
  proxy.web(req, res, { target: '<http://service-a:3000>' });
});

app.use('/service-b', (req, res) => {
  proxy.web(req, res, { target: '<http://service-b:3001>' });
});

app.listen(8080, () => console.log('API Gateway running on port 8080'));

2. 🔍 Service Discovery

Service Discovery helps microservices locate and communicate with each other dynamically.

3. 🔒 Authentication & Authorization

Implementing robust security measures is crucial in a distributed system.

// Example of JWT authentication middleware
const jwt = require('jsonwebtoken');

function authenticate(req, res, next) {
  const token = req.headers['authorization'];
  if (!token) return res.status(401).send('Access Denied');

  try {
    const verified = jwt.verify(token, process.env.TOKEN_SECRET);
    req.user = verified;
    next();
  } catch (err) {
    res.status(400).send('Invalid Token');
  }
}

4. 📊 Monitoring & Logging

Centralized logging and monitoring are essential for maintaining system health.

5. 🔄 Load Balancing

Load balancing ensures even distribution of traffic across service instances.

// Simple round-robin load balancer
class LoadBalancer {
  constructor(servers) {
    this.servers = servers;
    this.currentIndex = 0;
  }

  getNextServer() {
    const server = this.servers[this.currentIndex];
    this.currentIndex = (this.currentIndex + 1) % this.servers.length;
    return server;
  }
}

const balancer = new LoadBalancer(['server1', 'server2', 'server3']);
console.log(balancer.getNextServer()); // 'server1'
console.log(balancer.getNextServer()); // 'server2'
console.log(balancer.getNextServer()); // 'server3'
console.log(balancer.getNextServer()); // 'server1'

🧮 Mathematical Calculation: Load Balancing Efficiency

Let's calculate the efficiency of load balancing across n servers:

Efficiency (E) = 1 - (Max Load - Min Load) / Average Load

Where:

• Max Load = Maximum requests handled by any server

• Min Load = Minimum requests handled by any server

• Average Load = Total requests / Number of servers

Example:

For 3 servers handling 100, 110, and 90 requests respectively:

Max Load = 110

Min Load = 90

Average Load = (100 + 110 + 90) / 3 = 100

E = 1 - (110 - 90) / 100 = 0.8 or 80% efficiency

This calculation helps in assessing and optimizing load distribution across microservices.

Let's dive deeper into the mathematical calculation of load balancing efficiency using some interactive components:

// Interactive Load Balancing Efficiency Calculator
function calculateEfficiency(loads) {
  const maxLoad = Math.max(...loads);
  const minLoad = Math.min(...loads);
  const avgLoad = loads.reduce((a, b) => a + b, 0) / loads.length;
  return 1 - (maxLoad - minLoad) / avgLoad;
}

// Example usage:
const loads = [100, 110, 90];
console.log(`Efficiency: ${calculateEfficiency(loads).toFixed(2)}`);

Now, let's break down the formula and its components:

E = 1 - (Max Load - Min Load) / Average Load

Where:

• E: Efficiency

• Max Load: Highest number of requests handled by any server

• Min Load: Lowest number of requests handled by any server

• Average Load: Total requests / Number of servers

Let's examine each component:

• Max Load

  This represents the server handling the most requests. In our example, it's 110.

• Min Load

  This represents the server handling the least requests. In our example, it's 90.

• Average Load

  This is calculated by summing all requests and dividing by the number of servers. In our example: (100 + 110 + 90) / 3 = 100

The formula subtracts the efficiency value from 1 to give a percentage where:

• 1 (or 100%) represents perfect load distribution

• 0 (or 0%) represents the worst possible distribution

In our example:

E = 1 - (110 - 90) / 100
  = 1 - 20 / 100
  = 1 - 0.2
  = 0.8 or 80%

This 80% efficiency indicates a reasonably good load distribution, but there's still room for improvement.

💡 Tip: Aim for an efficiency as close to 100% as possible. However, in real-world scenarios, factors like network latency and varying request complexities can make perfect distribution challenging.

By regularly calculating and monitoring this efficiency metric, you can:

• Identify imbalances in your microservices architecture

• Make informed decisions about scaling specific services

• Optimize resource allocation across your infrastructure

Remember, while this calculation provides valuable insights, it should be used in conjunction with other metrics for a comprehensive understanding of your microservices performance.

🌟 Benefits of Microservices

• ✅ Scalability: Easy to scale individual components

• ✅ Flexibility: Freedom to use different technologies for different services

• ✅ Resilience: Failure in one service doesn't bring down the entire system

• ✅ Ease of Deployment: Faster and less risky deployments

• ✅ Organizational Alignment: Allows for small, focused teams

⚠️ Challenges in Microservices

• ❗ Increased Complexity: More moving parts to manage

• ❗ Data Consistency: Maintaining data integrity across services

• ❗ Network Latency: Communication between services can introduce delays

• ❗ Testing: More complex integration testing scenarios

🚀 Best Practices for Microservices Design

1. Design services around business capabilities

2. Implement proper service boundaries

3. Use asynchronous communication when possible

4. Implement robust monitoring and logging

5. Use containerization (e.g., Docker) for consistent environments

🔍 Conclusion

Microservices architecture offers numerous benefits for complex, scalable systems. However, it also comes with its own set of challenges. Understanding the trade-offs and implementing best practices is crucial for successful microservices adoption.

🏗️ Real-World Microservices Architecture Example: E-commerce Platform

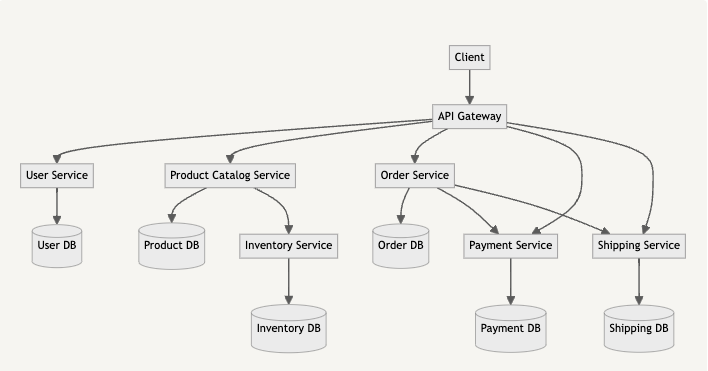

Let's explore a real-world microservices architecture for an e-commerce platform. This example will demonstrate how different services interact to create a robust and scalable system.

In this architecture, we have the following microservices:

• 👤 User Service: Manages user accounts and authentication

• 📦 Product Catalog Service: Handles product information and searches

• 🛒 Order Service: Manages order creation and processing

• 💳 Payment Service: Handles payment processing

• 🚚 Shipping Service: Manages shipping and delivery

• 📊 Inventory Service: Tracks product stock levels

🔄 User Flow Example

Let's walk through a typical user flow for placing an order:

📊 Mathematical Analysis: System Throughput

Let's calculate the system's theoretical maximum throughput using Little's Law:

L = λW

Where:

• L = Average number of items in the system

• λ = Average arrival rate of items

• W = Average time an item spends in the system

Assume:

• Each service can handle 100 requests/second

• Average processing time per request is 0.5 seconds

Calculation:

L = 100 requests/second * 0.5 seconds = 50 requests in the system at any given time

Maximum throughput = L / W = 50 / 0.5 = 100 requests/second

💡 This calculation helps in capacity planning and identifying potential bottlenecks in the microservices architecture.

🔍 Service Interaction Example: Order Processing

Let's examine how services interact during order processing:

// Order Service
async function processOrder(orderId) {
  const order = await getOrder(orderId);
  const paymentResult = await paymentService.processPayment(order.paymentDetails);

  if (paymentResult.success) {
    await inventoryService.updateStock(order.items);
    const shippingDetails = await shippingService.createShipment(order);
    await updateOrderStatus(orderId, 'PROCESSING', shippingDetails);
  } else {
    await updateOrderStatus(orderId, 'PAYMENT_FAILED');
  }
}

// Payment Service
async function processPayment(paymentDetails) {
  // Payment gateway integration logic
  return { success: true, transactionId: 'TX123456' };
}

// Inventory Service
async function updateStock(items) {
  for (const item of items) {
    await decreaseStock(item.productId, item.quantity);
  }
}

// Shipping Service
async function createShipment(order) {
  // Shipping provider integration logic
  return { trackingNumber: 'SHIP987654', estimatedDelivery: '2024-09-25' };
}

🔐 Security Considerations

Implementing robust security measures is crucial in a microservices architecture:

• 🔒 Use OAuth 2.0 or JWT for service-to-service authentication

• 🛡️ Implement rate limiting to prevent DoS attacks

• 🔐 Encrypt data in transit using TLS

• 🗝️ Use secrets management tools for storing sensitive information

📈 Scalability Strategy

To ensure the e-commerce platform can handle increased load:

• 🔄 Implement horizontal scaling for stateless services

• 💾 Use caching mechanisms (e.g., Redis) to reduce database load

• 🔀 Employ load balancing to distribute traffic evenly

• 📊 Implement database sharding for high-volume data (e.g., product catalog)

🌐 Real-World Microservices Examples

Let's explore how various innovative companies are leveraging microservices architecture in unique ways:

1. 🛒 Amazon

Amazon was one of the early adopters of microservices architecture. They transitioned from a monolithic architecture to microservices to handle their massive scale and diverse product offerings.

Amazon's microservices architecture allows them to deploy an average of 50 million times a year across thousands of services.

2. 🎥 Netflix

Netflix's transition to microservices enabled them to handle massive scalability requirements, especially during peak viewing hours.

Netflix handles about 1 billion calls between microservices per second during peak hours.

3. 🚗 Uber

Uber's microservices architecture enables them to handle real-time ride matching, pricing, and mapping for millions of users globally.

Uber's architecture processes over 100 million requests per second during peak hours.

4. 💳 PayPal

PayPal's microservices architecture allows them to process millions of financial transactions securely and efficiently.

PayPal's microservices handle over 1.1 billion transactions per day.

5. 🎵 Spotify

Spotify uses microservices to deliver personalized music experiences to millions of users worldwide.

Spotify's architecture manages over 100 billion events per day across its microservices.

6. 🏦 Capital One

Capital One leverages microservices to modernize its banking infrastructure and provide innovative financial services.

Capital One's microservices architecture processes over 12 billion API calls per day.

7. 🛍️ Etsy

Etsy's microservices architecture supports its global marketplace for unique and creative goods.

Etsy's architecture handles over 1.7 billion API calls per day.

8. 📱 Twitter

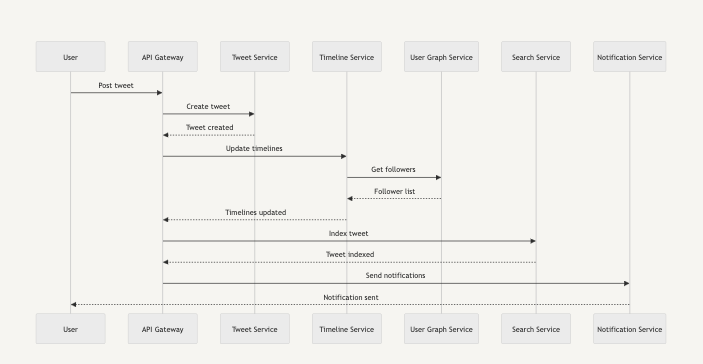

Twitter's microservices architecture enables real-time content delivery and interaction for millions of users.

Twitter's microservices process over 500 million tweets per day.

9. 📦 Airbnb

Airbnb uses microservices to manage its global accommodation marketplace efficiently.

Airbnb's architecture handles over 1 million guest arrivals per night globally.

10. 🚚 Zalando

Zalando, a European e-commerce company, uses microservices to manage its complex fashion retail operations.

Zalando's microservices architecture handles over 4,700 deployments per day across 200+ applications.

🧮 Mathematical Analysis: System Reliability

Let's calculate the overall system reliability using the reliability of individual microservices:

R(system) = R(s1) R(s2) ... * R(sn)

Where R(si) is the reliability of service i

Assume we have 5 critical services with the following reliabilities:

• User Service: 0.999

• Product Catalog Service: 0.998

• Order Service: 0.997

• Payment Service: 0.996

• Shipping Service: 0.995

R(system) = 0.999 0.998 0.997 0.996 0.995 = 0.985

This means the overall system reliability is 98.5%, which is lower than the reliability of any individual service. This demonstrates the importance of implementing fault tolerance and redundancy in microservices architecture.

💡 These examples showcase how microservices architecture enables companies to build scalable, flexible, and resilient systems that can handle massive loads and rapid innovation. Each company has tailored its microservices approach to meet its unique business needs and technical challenges.
